Navigation: Inventory Control (Distributor) >

Product Tree

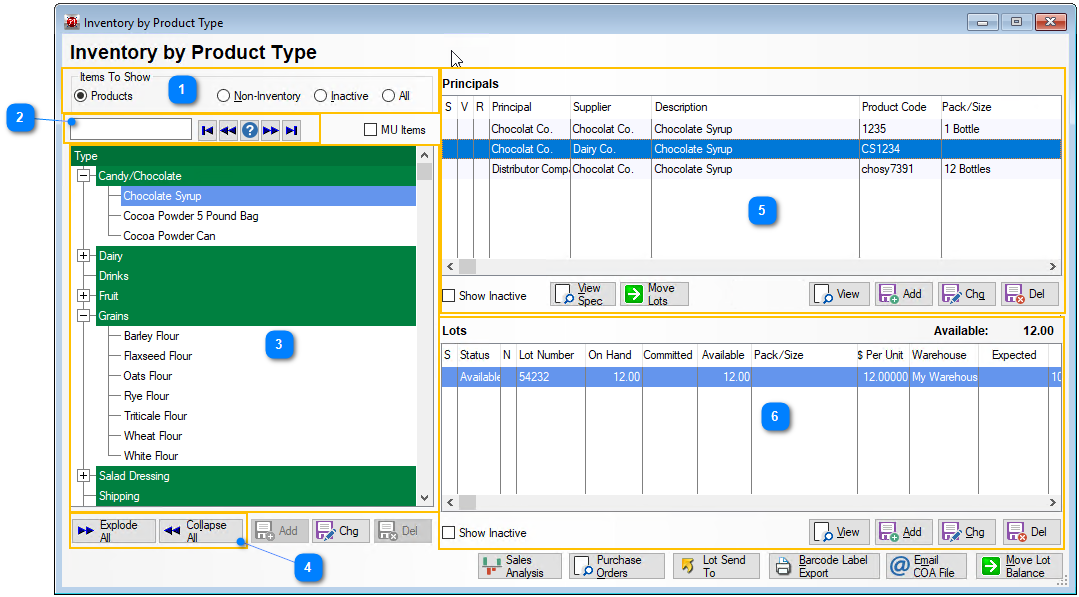

Select the types of products to show on the tree.  This defaults to Products.

This is a query box to go to a product area.

This is the product tree.  Use the +/- buttons at the left to open the selected type.  Selecting a product fills in the corresponding tables at the right Principals and Lots.  New Master Products can be added/modified or deleted using the buttons   at the bottom of the tree.   The Master product form will open.

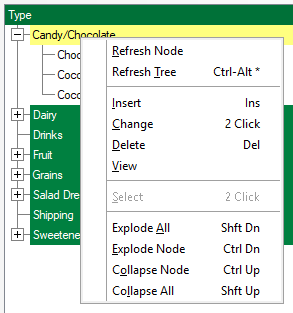

Types can be added by right clicking on an existing Type or adding a master product.

After the master product is open either start entry of new Item Type or press the  button.

This will pop up the Product Type list.  A new one can be added here.  See Product Types.

The tree can be fully opened (Explode All) and collapsed (Collapse All) using these buttons.

The Principal table shows all product linked to the master product.   In this case, Chocolate Syrup is the master product and the product type is Candy/Chocolate.  All product (types) that are active in the system are shown in the Principal table.

Lots associated with the Principal Products are shown in the Lots table.
